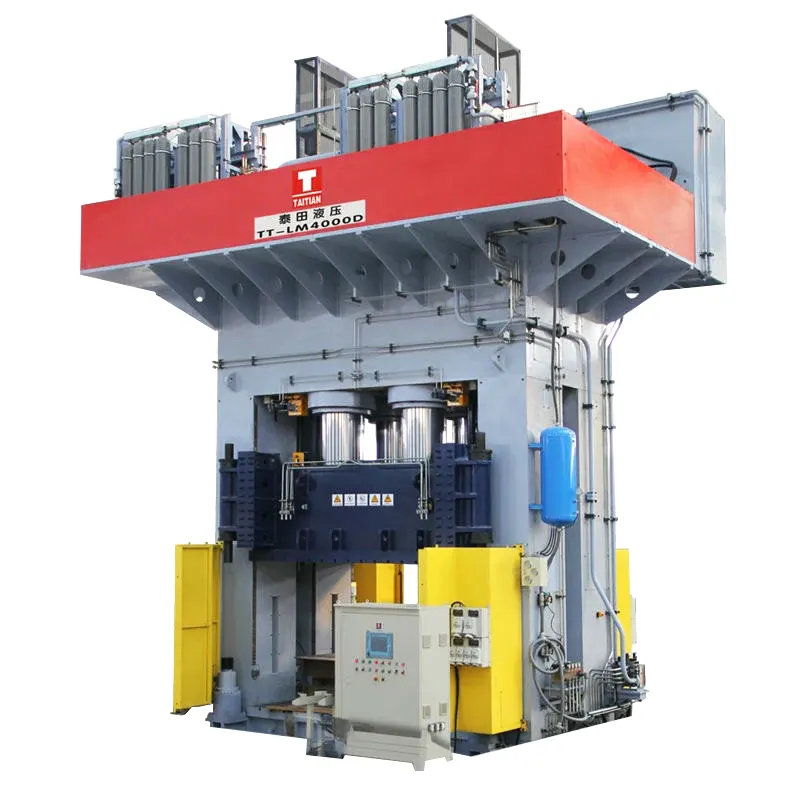

SMC Forming Hydraulic Press With CE Standard

As the professional manufacturers, we would like to provide you TAITIAN SMC Forming Hydraulic Press With CE Standard. TAITIAN SMC Press also called hydraulic composites forming press, it is applied in compression moulding of composites material such as SMC, BMC, FRP, GRP, GMT and so on. Our SMC presses and press lines offer the plastics industry superiour production capabilities, as well as repair and upgrade options. In addition to supplying new custom hydraulic compression molding presses, TAITIAN provides a comprehensive list of repair and upgrade options for existing composites molding presses of all makes and models. Our compression molding presses are used to produce an extensive variety of innovative automotive, aerospace, industrial.

Main Features:

H Frame structure of SMC press enjoys outstanding rigidity. It is mainly applied to compression moulding of SMC/FRP sheets. This series of press has reached international advanced standards.

SMC Forming Hydraulic Press With CE Standard Adopt cartridge valve integrated system characterized by little impact, reliable movement, little leakage and long service life; Enjoy automatic lubrication system for guide rails. (Such technology is introduced from Taiwan.)

Mechanical-electrical-hydraulic integration safety device, for example, lower chamber support for the oil cylinder, interlock circuit of upper and lower chambers, all contributing to perfect safety. (We introduce advanced Taiwan hydraulic technology.)

Constant pressure and stroke can be set for same production. It is also functioned by adjustable pressure holding time delay.

Pressure and stroke setting is easy to be done within a certain range as per production

requirements.

6. SMC Forming Hydraulic Press With CE Standard Adopt PLC+Touch Screen (HMI) integrated control. There are 3 operation manners, adjustable, manual and semi-automatic.

Applications:

TAITIAN NR standard hydraulic press is applied in compression moulding of composites material like SMC,BMC,FRP,GRP GMT and so on. Electric control cabinet strong/weak current separation, wiring are all in accordance with CE requirements. It has the characteristics of being in line with international standards, strong identification, easy to read and write, and simplify operation;

Optional configuration:

▶ Industrial oil cooler/condensate water circulation system,

▶ Mold change trolley

▶ Four-corner slow mold opening/four-corner leveling function,

▶ Upper/lower ejection function, external core pulling/ejection circuit,

Segmented pressurization, fast door, machine package covering, quick clamping device, mold temperature machine/freezer, vacuuming, feeding and discharging manipulator/robot, film tearing and cutting machine, dust collection and purification processing system, remote control cloud function, etc.

Hydraulic Control System

Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil .

All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.

Electric Control System

Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

Taitian Hydraulic is an ISO, SGS, CE and CSA certified company, we offer you various hydraulic press machine and other series of composite molding presses. Buy SMC Forming Press Machine with cheap price or low price from Taitian factory. contact us and get a detail on our machine.
