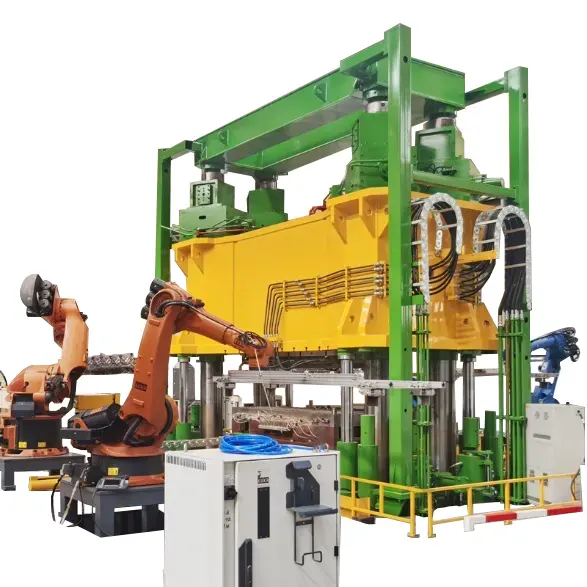

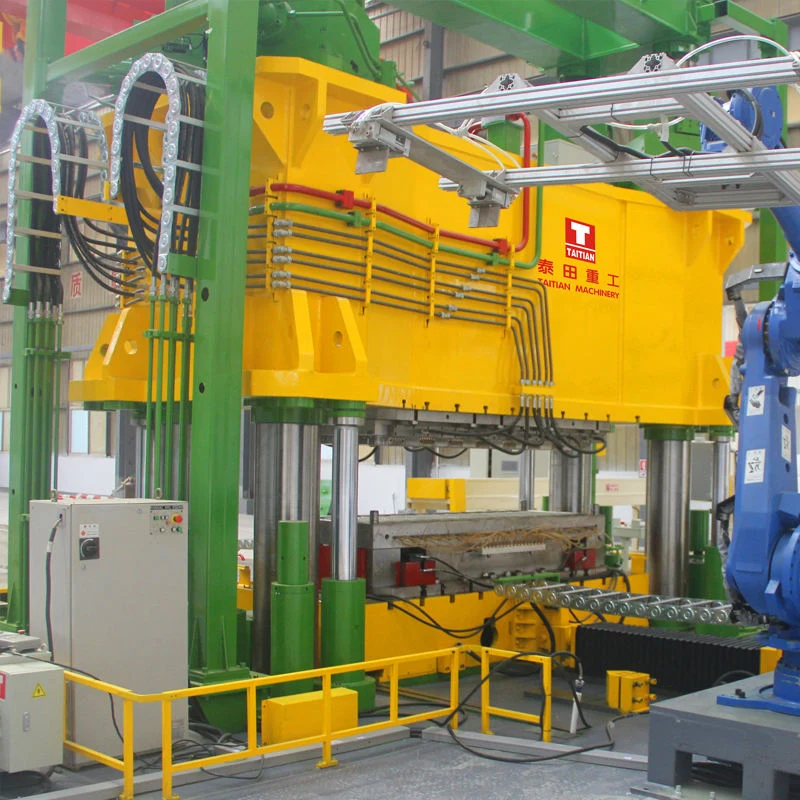

Hydraulic Press for New Generation SMC Forming

Scope of application:

You can rest assured to buy customized Taitian Hydraulic Press for New Generation SMC Forming from us. This hydraulic press is specially used for thermoforming of thermosetting composite materials. It is mainly used for SMC, BMC, DMC, GMT, LFT-D, LFT-G and other materials. These materials are widely used in the fields of ships, automobiles, power and electrical appliances, rail transportation, home decoration and bathroom, aerospace, mold trial production, etc.

Performance Characteristics:

1. Maximizing the utilization of effective space, achieving a 20% reduction in overall height for high tonnage with large stroke. The frame of this machine is specially designed to achieve the advantages of a large stroke, large opening, and large tonnage press with low height above ground, which can be installed in ordinary workshops and lowers the user's investment cost.;

2. Latest Selling Hydraulic Press for New Generation SMC Forming adopts a column clamping nut structure, which can achieve adjustable opening positions for any stroke. Meanwhile, it uses a frame type copper plate guide, which is convenient to adjust and has high accuracy;

3. The servo pump control system is used with logical proportional control. The hydraulic system is centralized below the ground, and the pipeline is integrated to reduce leakage. It has the characteristics of a simple system, convenient operation, easy maintenance, energy saving and environmental protection.

4.The Mitsubishi or Siemens PLC programmable controller is used, and the human-machine interface adopts a Chinese/English color touch screen. The electrical control cabinet is separated from high voltage, and the wiring is all in accordance with CE requirements. It has strong recognition, easy reading and writing, and simple operation, which is in line with international standards.

Optional configuration:

▶ Electric mold changing trolley

▶ Four-corner leveling function /parallelism leveling system

▶ External core pulling/ejection circuit

▶ Industrial oil cooler/condensate circulation system

▶ Mold temperature controller

▶ Fast mold clamping device

Taitian Hydraulic is an ISO, SGS, CE and CSA certified manufacturer, we offer you various hydraulic press machine and other series of composite molding presses. The integrated control and peripheral equipment can be offered to realize the overall turnkey project as per customers' requirements.

contact us and get a detail on our machine.
